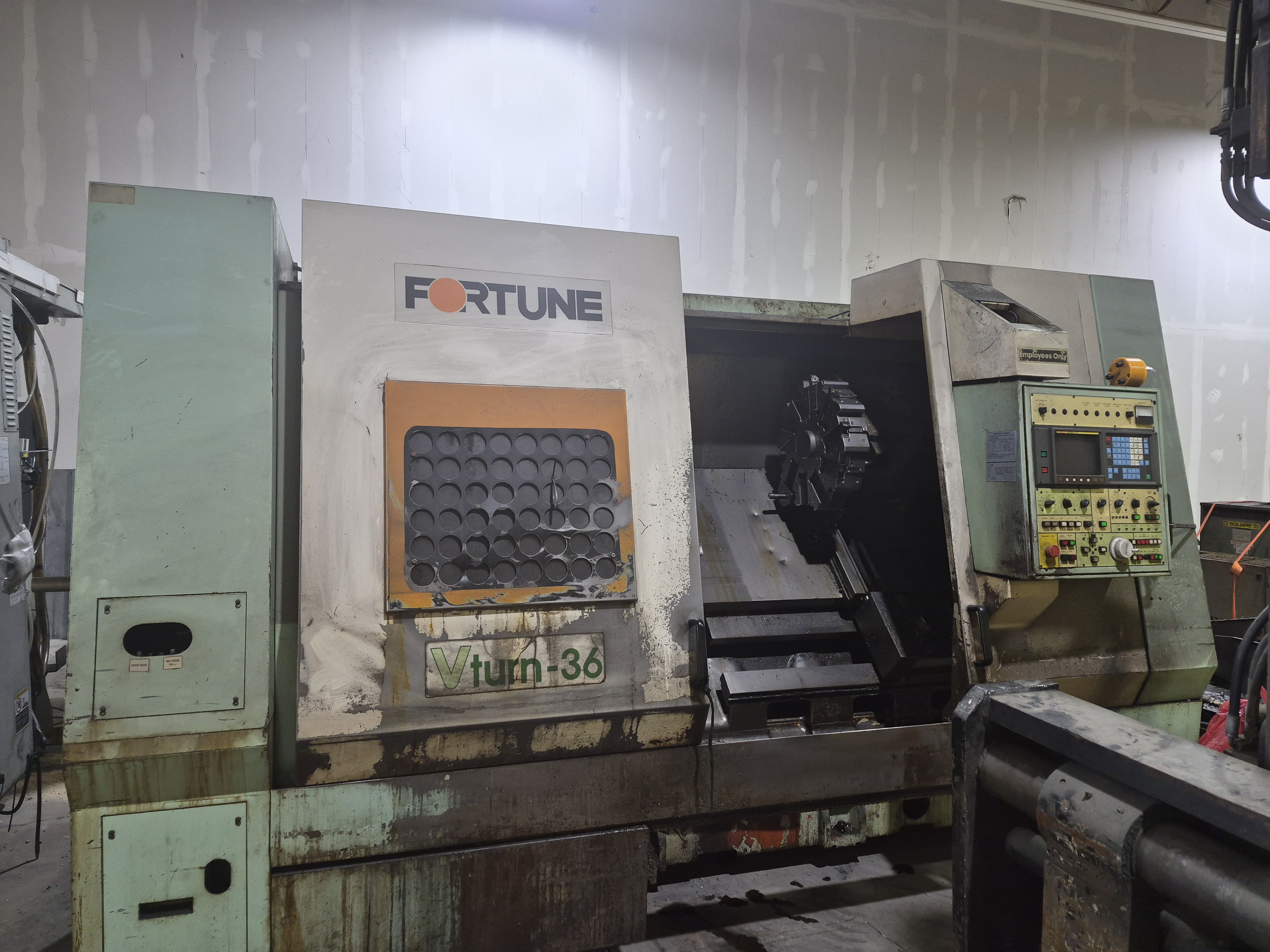

FORTUNE VTURN-36 CNC Turning Center

Description

1998 FORTUNE VTURN-36 CNC Turning Center equipped with FANUC 0T-C control. Heavy-duty slant-bed construction with X and Z axis configuration, hydraulic 3-jaw chuck, CNC indexing turret, and box guideways. Designed for reliable general-purpose and heavy-duty turning applications. Used machine, complete as shown in the photos. Suitable for machining a wide range of medium to large diameter components.

Specifications

Year

1998

Manufacturer

FORTUNE / Victor Taichung

Model

VTURN-36

Machine Type

CNC Turning Center

Control

FANUC 0T-C

Axes

2-Axis (X & Z)

Swing Over Bed

25.4 in (645 mm)

Maximum Turning Diameter

21.6 in (549 mm)

Maximum Turning Length

Approx. 35 in (889 mm)

Bar Capacity

Approx. 3.5 in (89 mm)

Spindle Speed

Up to 2,500 RPM

Spindle Nose

A2-8

Spindle Bore

Approx. 4.13 in (105 mm)

Spindle Motor

Approx. 35 HP

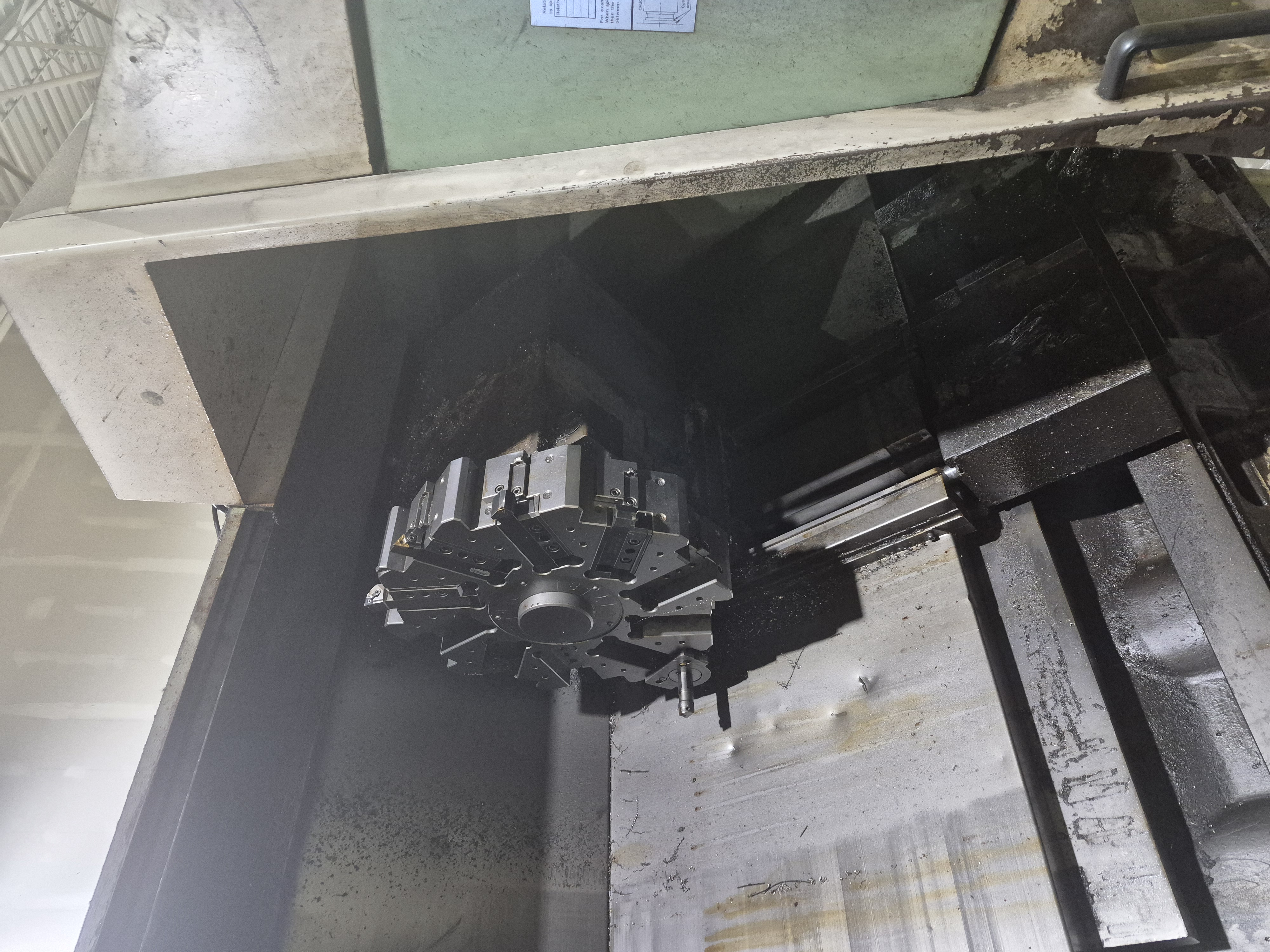

Turret

10-Station

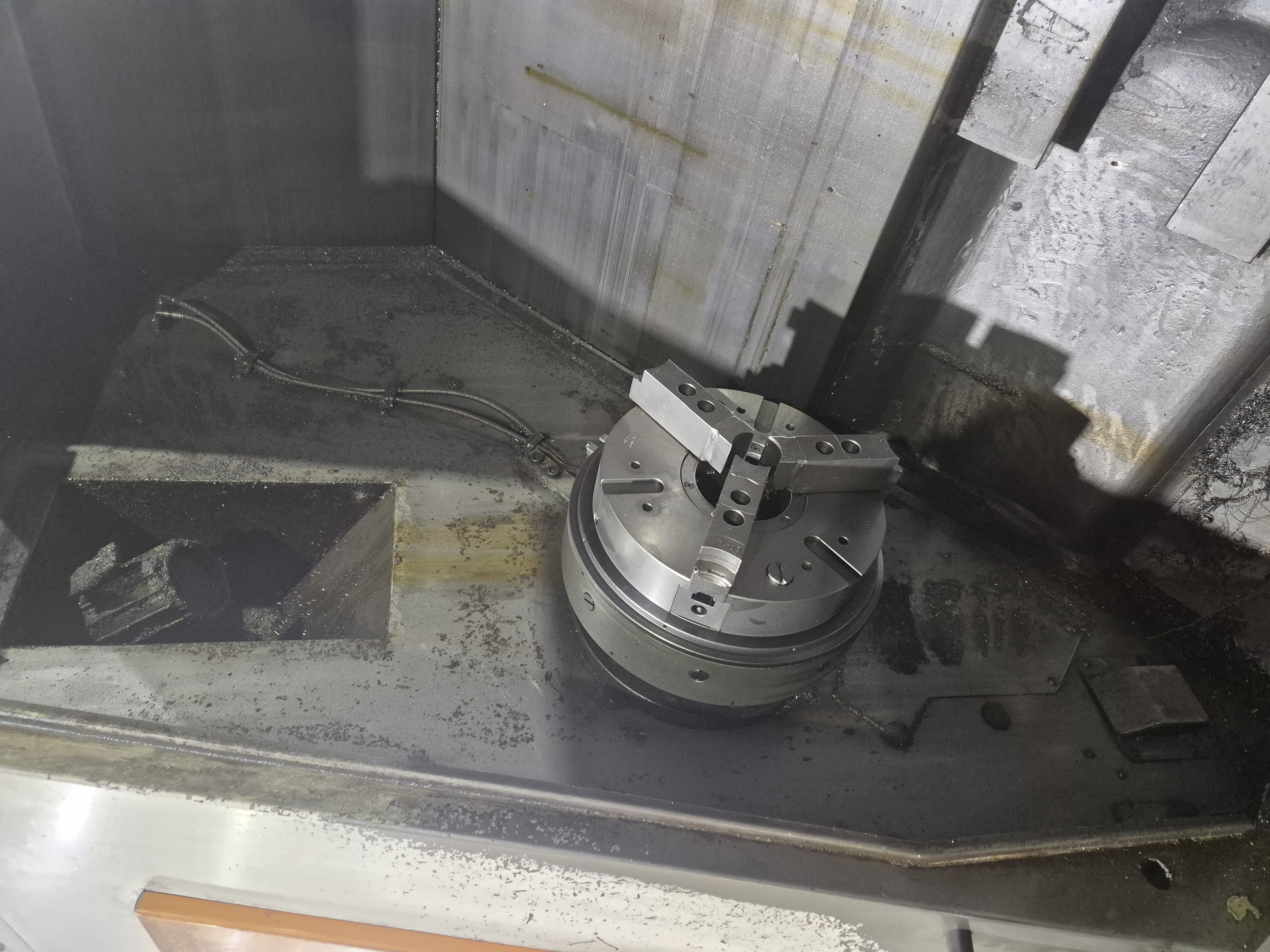

Chuck

12 in Hydraulic 3-Jaw

Guideways

Box Ways

Tailstock

Hydraulic

Power Supply

220V / 3-Phase / 50-60 Hz

Approx. Machine Weight

18,000–19,000 lbs
