CNC Turning Center
Takisawa TC-200 L3 – CNC Lathe

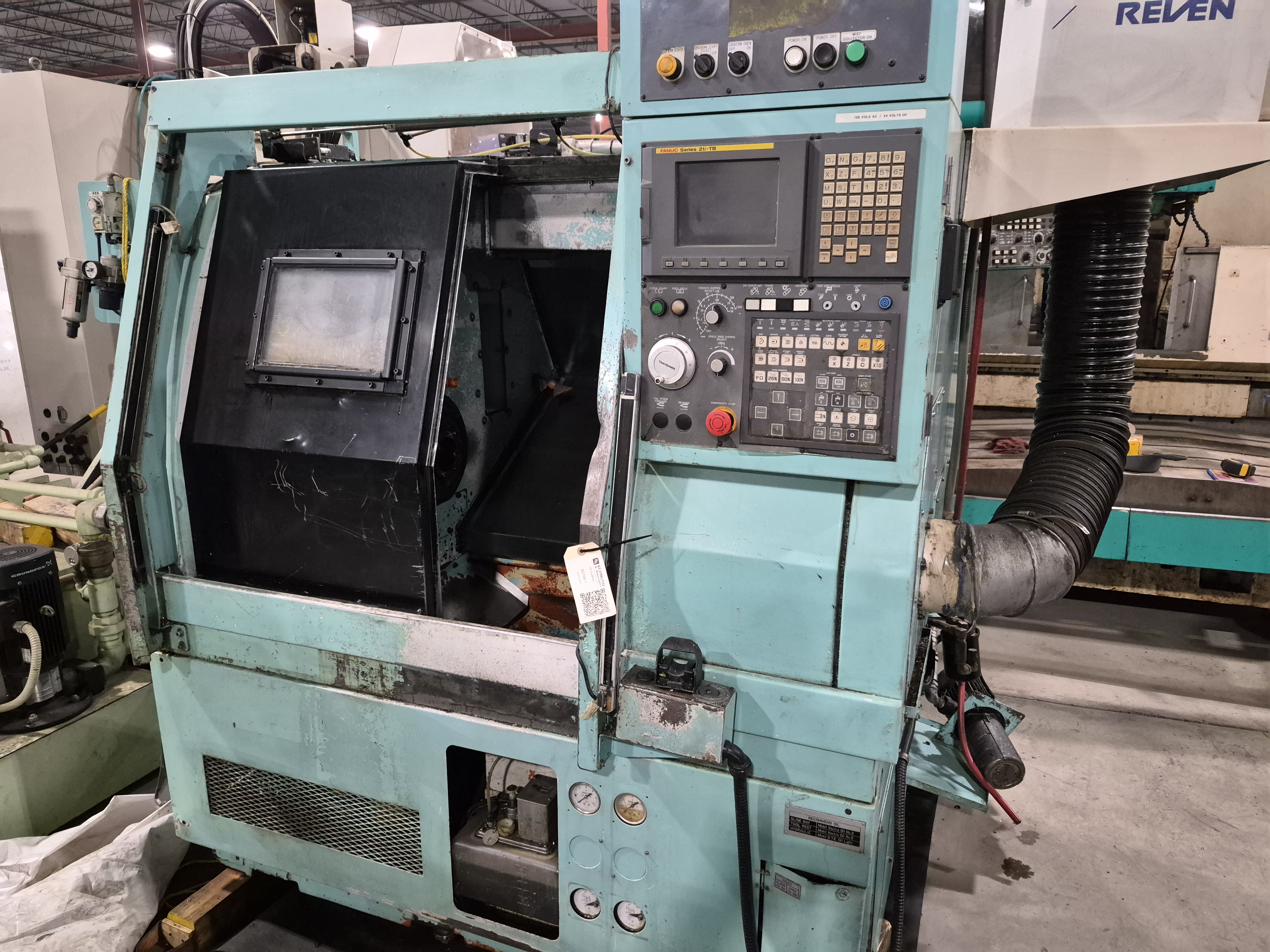

2004 Takisawa TC-200 L3 CNC Turning Center
Description
Takisawa TC-200 L3 CNC Turning Center, Year 2004, equipped with Fanuc 21i-T CNC control. Features a 12-station turret and tailstock. Used machine in good working condition. Available for sale and export worldwide.
Specifications
- Max. Turning Diameter
- 280 mm
- Max. Machining Length
- 600 mm
- Spindle Speed
- 4,500 rpm
- Spindle Bore
- 62 mm
- Bar Capacity
- 51 mm
- X-Axis Travel
- 190 mm
- Z-Axis Travel
- 650 mm
- Turret
- 12 Stations
- Tailstock
- Included
- Controller
- Fanuc 21i-T
- Weight
- Approx. 3,175 kg (7,000 lb)
